Wimba Wound Care

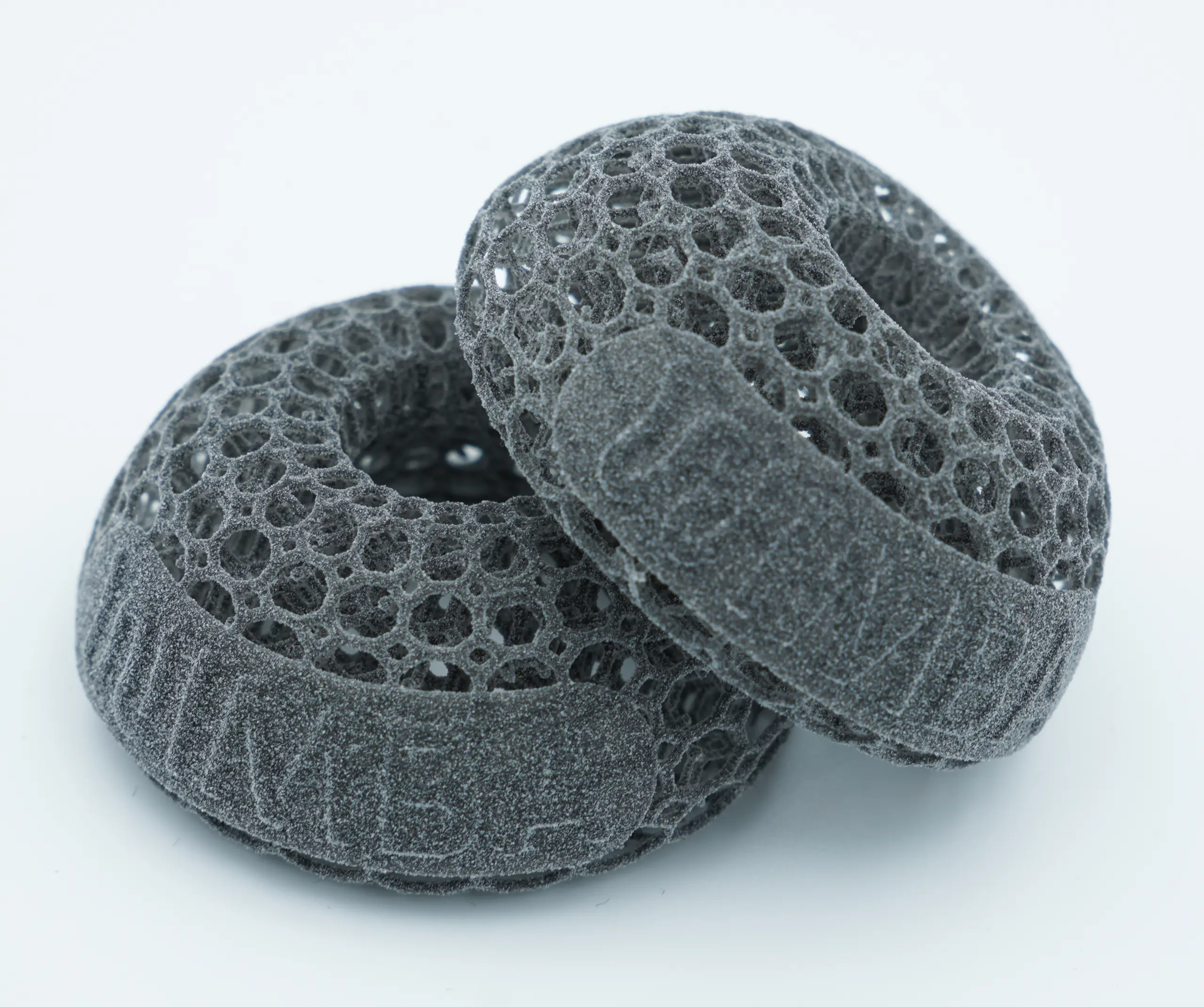

A domed profile with a gradient wall, giving 20 mm of clearance above
the wound in a compact 50 mm footprint.

SPECIFICATIONS

Material: TPU, 3D-printed

Internal opening: Ø 30 mm

External size: Ø 50 mm

Height: 20 mm

Reusable: Yes

TYPICAL USE

. Wounds needing extra clearance above the surface
. Compact sites where a wide ring does not fit

The smallest device in the range, for small superficial wounds and
locations where space is limited.

SPECIFICATIONS

Material: TPU, 3D-printed

Internal opening: Ø 30 mm

External size: Ø 40 mm

Height: 15 mm

Reusable: Yes

TYPICAL USE

. Small superficial wounds
. Locations with limited surrounding space

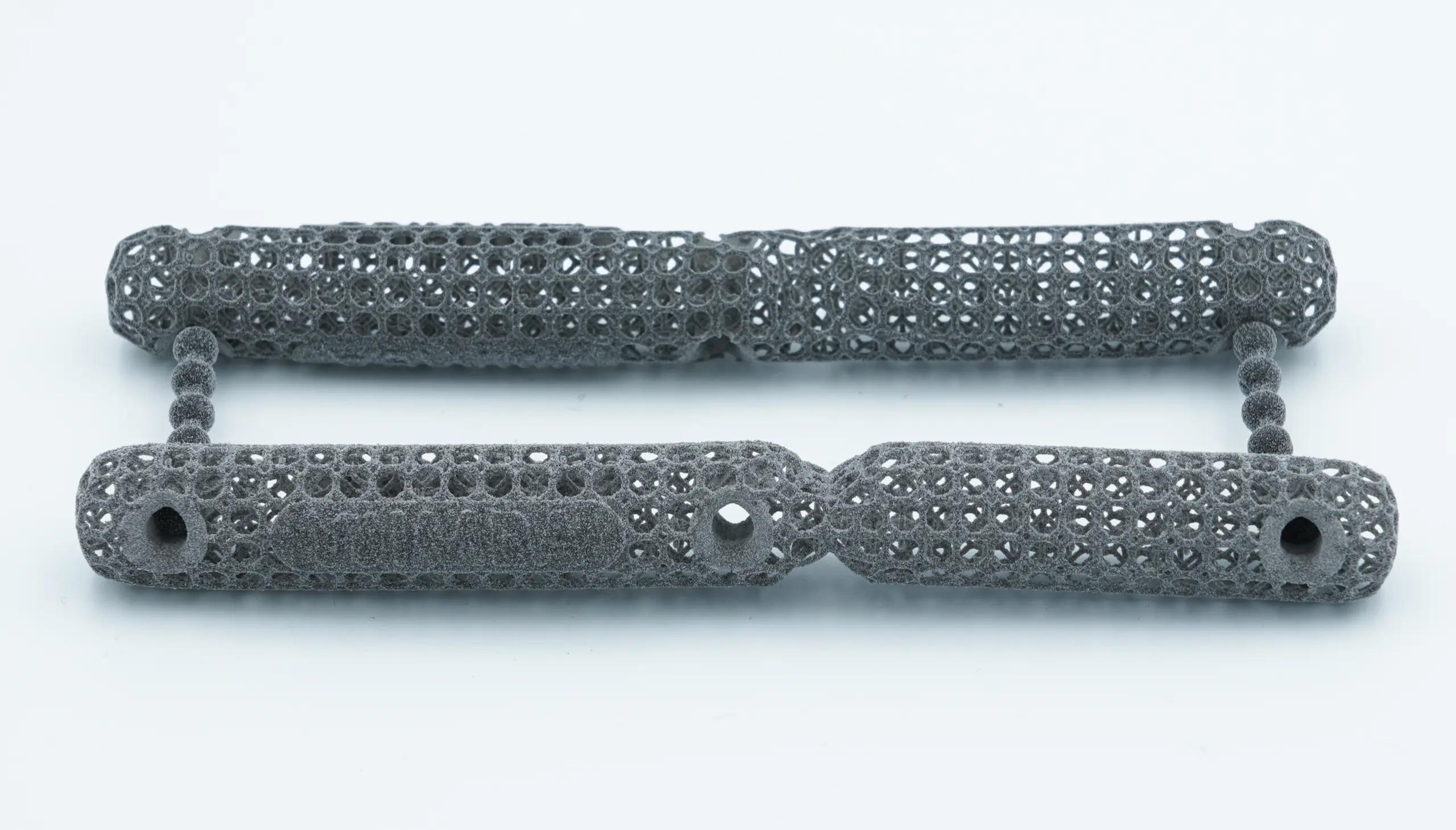

A pair of 140 mm cylindrical elements with connectors, for linear and
irregularly shaped wounds where a ring geometry does not fit.

SPECIFICATIONS

Material: TPU, 3D-printed

External size: L 140 mm (2 pcs)

Height: 15 mm

Reusable: Yes

TYPICAL USE

. Linear wounds and irregular wound shapes
. Sites where a ring geometry does not fit
. Configurable perimeters using the connectors

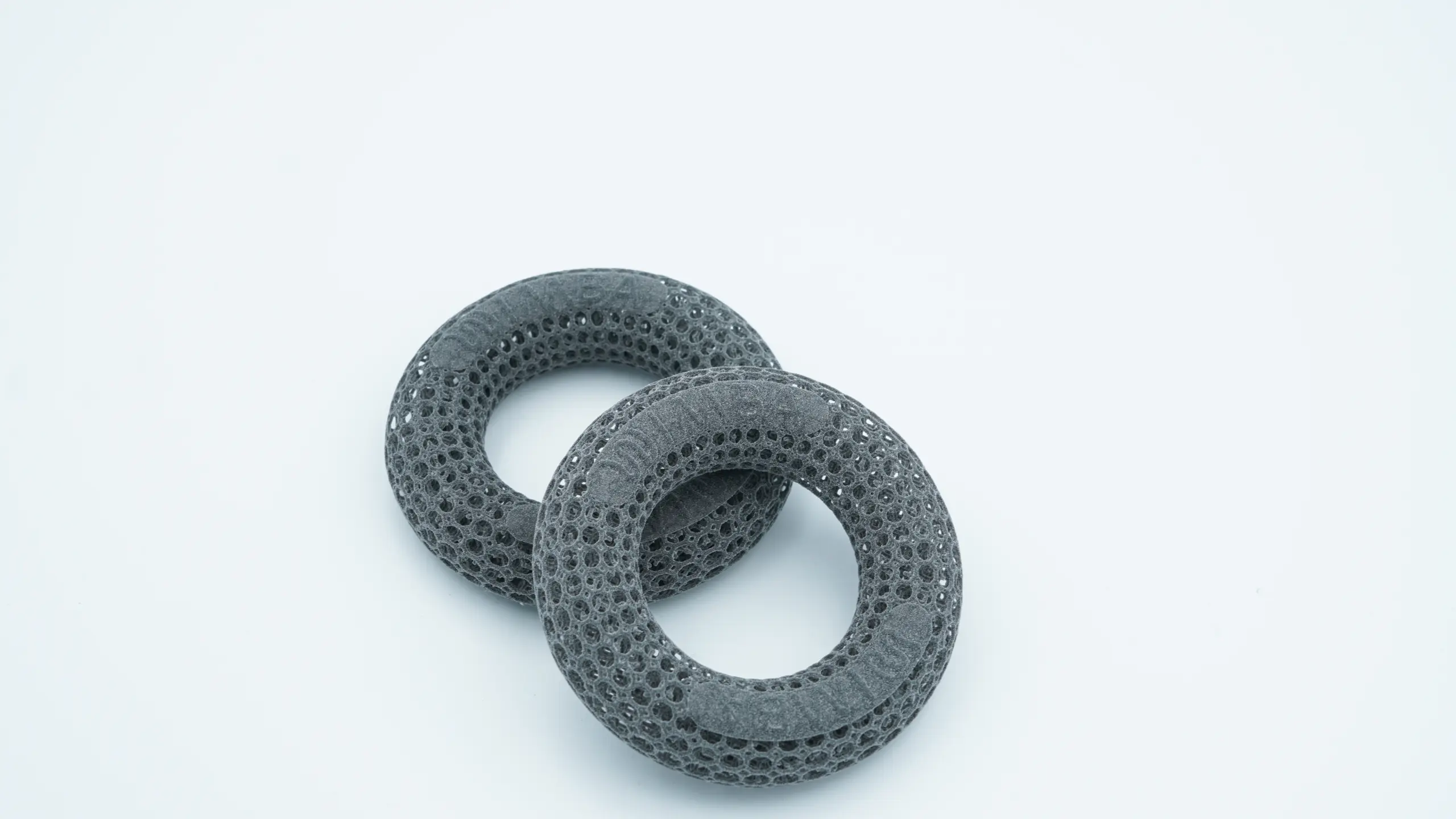

Scaled-up ring for larger wounds and post-surgical sites, with a 45 mm
opening and 20 mm of clearance.

SPECIFICATIONS

Material: TPU, 3D-printed

Internal opening: Ø 45 mm

External size: Ø 85 mm

Height: 20 mm

Reusable: Yes

TYPICAL USE

. Larger wounds and post-surgical sites
. Broad pressure distribution around the wound

The Large Donut with three wing extensions, distributing load over a
wider area and providing additional bandage anchoring points.

SPECIFICATIONS

Material: TPU, 3D-printed

Internal opening: Ø 45 mm

External size: Ø 85 mm

Height: 20 mm

Reusable: Yes

TYPICAL USE

. Large wounds where load must spread over a wider area
. Sites needing additional bandage anchoring points

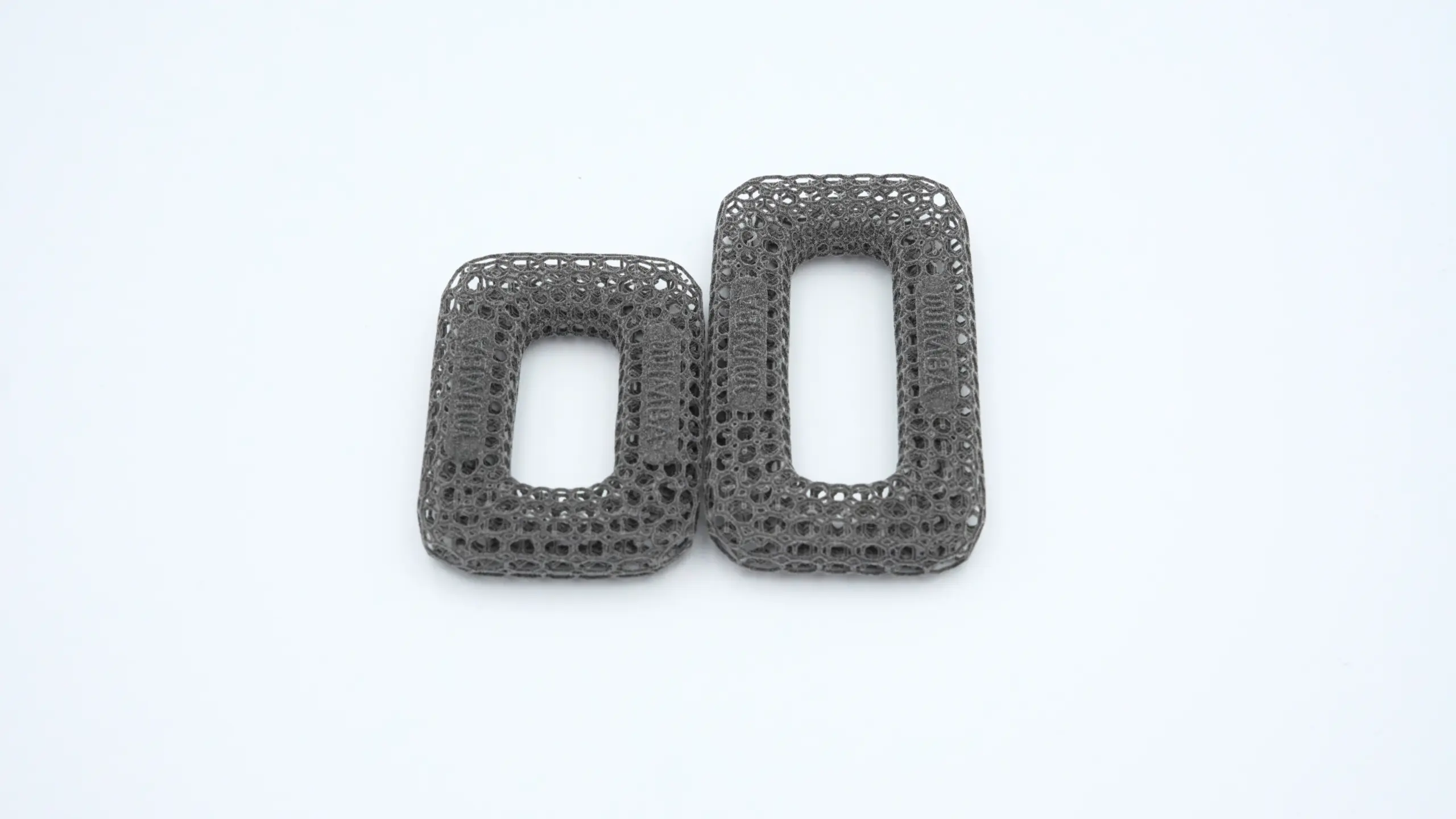

A flat rectangular frame, 70 x 50 mm. At 13 mm it is the lowest-profile
device in the range, for sites where a domed or ring spacer would sit
too proud.

SPECIFICATIONS

Material: TPU, 3D-printed

External size: 70 x 50 mm

Height: 13 mm

Reusable: Yes

TYPICAL USE

. Incision lines and other linear wounds

. Low-profile sites where domed spacers sit too proud

The same flat 13 mm profile scaled up to 90 x 50 mm, for longer
incisions and larger post-surgical areas.

SPECIFICATIONS

Material: TPU, 3D-printed

External size: 90 x 50 mm

Height: 13 mm (to confirm)

Reusable: Yes

TYPICAL USE

. Longer incisions

. Larger post-surgical areas
